Specifications – Canon imageRUNNER ADVANCE DX 8700 Series

MAIN UNIT
TYPE	Monochrome Laser Multifunctional
CORE FUNCTIONS	Standard:Print, Copy, Scan, Send, Store Optional:Fax
PROCESSOR	1.75 GHz Dual Core Processor
CONTROL PANEL	Standard: 10.1″ TFT LCD WSVGA Color Touch panel
CONTROL PANEL	Optional: 10.4″ TFT LCD SVGA Color Upright Touch Panel
MEMORY	3.0 GB RAM
HARD DISK DRIVE	Standard: 320 GB (available disk space: 250 GB),
HARD DISK DRIVE	Optional: 250GB, 1TB
INTERFACE CONNECTION	Network:1000Base-T/100Base-TX/10Base-T, Wireless LAN(IEEE 802.11 b/g/n)
	Optional:NFC, Bluetooth Low Energy
	Others Standard:USB 2.0 x1 (Host), USB 3.0 x1 (Host), USB 2.0 x1 (Device)
	Optional:Serial Interface, Copy Control Interface
PAPER CAPACITY (LETTER, 20 LB. BOND)	Standard:4,200 sheets
PAPER CAPACITY (LETTER, 20 LB. BOND)	Maximum:7,700 sheets
PAPER SOURCES (LETTER, 20 LB. BOND)	Standard:Dual 550-sheet Paper Cassettes, Dual 1,500-sheet Paper Deck, 100-sheet Multipurpose Tray
PAPER SOURCES (LETTER, 20 LB. BOND)	Optional:3,500-sheets Paper Deck Unit-E1 or POD Deck Lite-C1
PAPER OUTPUT CAPACITY (LETTER, 20 LB. BOND)	Standard: 250 sheets (with Copy Tray-R2).
PAPER OUTPUT CAPACITY (LETTER, 20 LB. BOND)	Maximum: 5,000 sheets (High-Volume Stack modo “ON” with Staple Finisher-W1 PRO or Booklet Finisher-W1 Pro)
FINISHING CAPABILITIES	With options: Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, Eco Staple, Staple On Demand, Document Insertion, Z-fold, Half-fold, C-fold, Accordion-Z fold, Double Parallel-fold, Trimming
SUPPORTED MEDIA TYPES	Multi-purpose tray:Thin, Plain, Recycled, Color, Heavy, Tracing, Bond, Transparency, Labels, Pre-punched, Letterhead, Tab, Tracing”
	Paper Decks (Right/Left):Thin, Plain, Recycled, Color, Heavy, Bond, Pre-punched, Letterhead
	Paper Cassettes (Upper/Lower):Thin, Plain, Recycled, Color, Heavy, Bond, Pre-punched, Letterhead, Tab
SUPPORTED MEDIA SIZES	Multi-purpose tray: Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 100.0 x 148.0 mm to 330.2 x 487.7 mm Free size: 100.0 x 148.0 mm to 330.2 x 487.7 mm
	Paper Decks (Right/Left): Standard size: A4, B5
	Paper Cassettes (Upper/Lower): Standard size: SRA3, A3, A4, A4R, A5R, B4, B5, B5R Custom size: 139.7 x 182.0 mm to 330.2 x 487.7 mm
SUPPORTED MEDIA WEIGHTS	Multi-purpose tray: 52 to 256 gsm
	Paper Deck (Right/Left): 52 to 220 gsm
	Paper Cassette (Upper/Lower): 52 to 220 gsm
	Duplex: 52 to 220 gsm
PRINT/COPY SPEED (BW AND COLOR)	imageRUNNER ADVANCE DX 8700 Series
	imageRUNNER ADVANCE DX 8705i: up to 105 ppm (A4), up to 54 ppm (A3), up to 76 ppm (A4R), up to 105 ppm (A5R)
	imageRUNNER ADVANCE DX 8795i: up to 95 ppm (A4), up to 50 ppm (A3), up to 69 ppm (A4R), up to 95 ppm (A5R)
	imageRUNNER ADVANCE DX 8786i: up to 86 ppm (A4), up to 44 ppm (A3), up to 63 ppm (A4R), up to 86 ppm (A5R)
WARM-UP TIME	From Power On:Approx. 60 Seconds
	From Sleep Mode:Approx. 60 Seconds
	Quick Startup Mode:Approx. 4 Seconds
DIMENSIONS (W x D x H)	imageRUNNER ADVANCE DX 8705i/8795i/8786i MFP Model (with flat control panel): 26-3/8″ x 30-1/4″ x 46-5/8″ (670 x 770 x 1,185 mm) imageRUNNER ADVANCE DX 8705i/8795i/8786i MFP Model (with upright touch panel): 46″ x 30-1/4″ x 49-5/8″ (1,170 x 770 x 1,252 mm) imageRUNNER ADVANCE DX 8705i/8795i/8786i Printer Model: 26-3/8″ x 30-1/4″ x 42-5/8″ (670 x 770 x 1,075 mm)
INSTALLATION SPACE (W x D x H)	Basic: 1,533 x 1,353 mm (with Multi-purpose tray/upper-right cover open + Front Cover open + Copy Tray) Fully configured: 5,068 x 1,400 mm (with POD Deck Lite-C1 + Document Insertion Unit-N1 + Multifunction Professional Puncher-B1 + Paper Folding Unit-J1 + Booklet Finisher-W1 Pro + Booklet Trimmer-F1 + Main unit Front Cover open)
WEIGHT	imageRUNNER ADVANCE DX 8705i/8795i/8786i MFP Model: 496 lbs, 487.2 lbs (225 kg, 221 kg) imageRUNNER ADVANCE DX 8705i/8795i/8786i Printer Model: 443.1 lbs (201 kg)

PRINT SPECIFICATIONS
PRINT RESOLUTION (dpi)	1200 x 1200, 600 x 600
STANDARD PAGE DESCRIPTION LANGUAGES	UFR II, PCL®6, Adobe® PS® 3
SUPPORTED FILES	PDF, TIFF, JPEG, EPS, XPS
PRINTING FROM MOBILE AND CLOUD-BASED SERVICES	A range of standard and optional software and MEAP-based solutions (including AirPrint, Mopria, Google Cloud Print, Canon PRINT Business, and uniFLOW Online) are available to provide printing for the imageRUNNER ADVANCE DX 8700 Series from mobile devices or internet-connected devices and cloud-based services depending on your requirements. Please contact your sales representative for further information.
FONTS	PCL Fonts:93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T (Japanese, Korean, Simplified and Traditional Chinese),Barcode Fonts PS Fonts:136 Roman
OPERATING SYSTEM	UFRII: Windows®7/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016/Server 2019, MAC OS X (10.10 or later) PCL: Windows®7/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016/Server 2019 PS: Windows®7/ 8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016/Server 2019, MAC OS X (10.10 or later) PPD: Windows®7/8.1/10, MAC OS X (10.9 or later) McAfee Embedded Control Software

COPY SPECIFICATIONS
FIRST-COPY-OUT-TIME	As fast as 2.7 seconds
COPY RESOLUTION (dpi)	600 x 600
MULTIPLE COPIES	Up to 9,999
MAGNIFICATION	25%-400% (1% Increments)
PRESET REDUCTION / ENLARGEMENT	25%, 50%, 70%, 100%(1:1), 141%, 200%, 400%

SCAN SPECIFICATIONS
TYPE	Single-pass Duplexing Automatic Document Feeder
DOCUMENT FEEDER PAPER CAPACITY	Up to 200 Sheets (20 lb. Bond)
DOCUMENT FEEDER SUPPORTED MEDIA SIZES	11″ x 17″, Legal, Letter, Letter-R, Statement, Statement-R, Custom size: 2-3/4″ x 5-1/2″ to 12″ x 17″ (70 x 139.7 mm to 304.8 x 431.8 mm)
DOCUMENT FEEDER SUPPORTED MEDIA WEIGHTS	1-sided scanning: 38 to 220 gsm (BW), 64 to 220 gsm (CL)
DOCUMENT FEEDER SUPPORTED MEDIA WEIGHTS	2-sided scanning: 38 to 220 gsm (BW), 64 to 220 gsm (CL)
PLATEN ACCEPTABLE ORIGINALS	Sheet, Book, 3-Dimensional Objects
PLATEN MAXIMUM SCANNING SIZE	Up to 11-3/4″ x 17″ (297.0 mm x 431.8 mm)
PULL SCAN	Color Network ScanGear2 for both Twain and WIA
PULL SCAN	Supported OS:Windows 7/8.1/10/ Server 2008/Server 2008 R2/ Server 2012/Server 2012 R2/Server 2016
SCAN RESOLUTION	Scan for Copy:600 x 600
	Scan for Send:Push (600 x 600), SMB/FTP/WebDAV, Pull (600 x 600)
	Scan for Fax:600 x 600
SCAN TO MOBILE DEVICES AND CLOUD-BASED SERVICES	A range of solutions is available to provide scanning to mobile devices and cloud-based services depending on your requirements.
SCAN SPEED (LETTER)	Single-sided Scanning BW/Color:135 ipm (300 dpi)/135 ipm (300 dpi), 135 ipm (600 dpi)/80 ipm (600 dpi)
SCAN SPEED (LETTER)	Double-sided Scanning BW/Color:270 ipm (300 dpi)/270 ipm (300 dpi), 165 ipm (600 dpi)/90 ipm (600 dpi)

SEND SPECIFICATIONS
DESTINATION	Standard:E-mail/Internet FAX (SMTP), SMB 3.0, FTP, WebDAV, Mail Box
DESTINATION	Optional:Super G3 FAX, IP Fax
ADDRESS BOOK	LDAP (2,000)/Local (1,600)/Speed Dial (200)
SEND RESOLUTION	Push:Up to 600 x 600 dpi
SEND RESOLUTION	Pull:Up to 600 x 600 dpi
COMMUICATION PROTOCOL	File:FTP (TCP/IP), SMB 3.0 (TCP/IP), WebDAV
COMMUICATION PROTOCOL	Email:SMTP, POP3
FILE FORMAT	TIFF, JPEG, PDF(Compact, Searchable, Apply Policy, Optimize for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word)

FAX SPECIFICATIONS
MAXIMUM NUMBER OF LINES	2
MODEM SPEED	Super G3: 33.6 Kbps
MODEM SPEED	G3:14.4 Kbps
COMPRESSION METHOD	MH, MR, MMR, JBIG
RESOLUTION	400 x 400, 200 x 400, 200 x 200, 200 x 100
SENDING / RECORDING SIZE	Statement-R to 11″ x 17″
FAX MEMORY	Up to 30,000 Pages (2,000 Jobs)
SPEED DIALS	Max. 200
GROUP DIALS / DESTINATIONS	Max. 199 Dials
SEQUENTIAL BROADCAST	Max. 256 Addresses
MEMORY BACKUP	Yes

STORE SPECIFICATIONS
MAIL BOX SIMPLE (NUMBER SUPPORTED)	100 User In-boxes, 1 Memory RX In-box, 50 Confidential Fax In-boxes, Maximum 30,000 Pages (2,000 Jobs Stored)
ADVANCED BOX	Communication Protocol: SMB or WebDAV
	Supported Client PC: Windows® 8.1/10
	Concurrent Connections (Max.): SMB:64, WebDAV:3
ADVANCED BOX AVAILABLE DISC SPACE	Approx. 16 GB (Standard HDD) Approx. 480 GB

SECURITY SPECIFICATIONS
AUTHENTICATION	Standard:User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online Express (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Access Management System (Access Control)
DEVICE	Protecting HDD Data (HDD Data Encryption (FIPS140-2 Validated), HDD Data Overwrite Erase, HDD Lock), Standard HDD Initialize, Trusted Platform Module (TPM), Job Log Conceal Function, Protecting MFD Software Integrity, Checking MFD Software Integrity (Verify System at Startup, Runtime Intrusion Detection), Comply IEEE2600.2 (Common Criteria Certification) (TBD)
NETWORK	TLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Disabling Unused Functions (Enabling/Disabling Protocols/Applications, Enabling/Disabling Remote UI, Enabling/Disabling USB Interface), Communication Line Separation (G3 FAX, USB Port, Advanced Space, Scan and Send -Virus Concerns for E-mail Reception)
DOCUMENT	Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS, Adobe LiveCycle® Rights Management ES2.5 Integration), BOX Security (Mail Box Password Protected, Advanced Space Access Control), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support), Scan Lock (QR code), Document Tracking (Secure Watermark)

ENVIRONMENTAL SPECIFICATIONS
OPERATING ENVIRONMENT	The operating environment for the imageRUNNER ADVANCE DX 8700 Series models should be within the following ranges.
	Temperature: 50 to 86 ºF
	Humidity: 20 to 80 % RH (Relative Humidity)
POWER REQUIREMENTS	220-240V, 50/60Hz, 10A
POWER CONSUMPTION	Maximum: Approx. 2,400 W
	Standby: Approx. 217 W
	Sleep mode: Approx. 0.9 WTypical Electricity Consumption (TEC): imageRUNNER ADVANCE DX8705: 9.6 kWh, imageRUNNER ADVANCE DX 8795i: 9.0 kWh, imageRUNNER ADVANCE DX 8786i: 8.6 kWh
	Note:As per USA Energy Star 3.0

CONSUMABLES
TONER	C-EXV 35 Black Toner
TONER YIELD (ESTIMATED @ 6% COVERAGE)	70,000 pages

Back to products

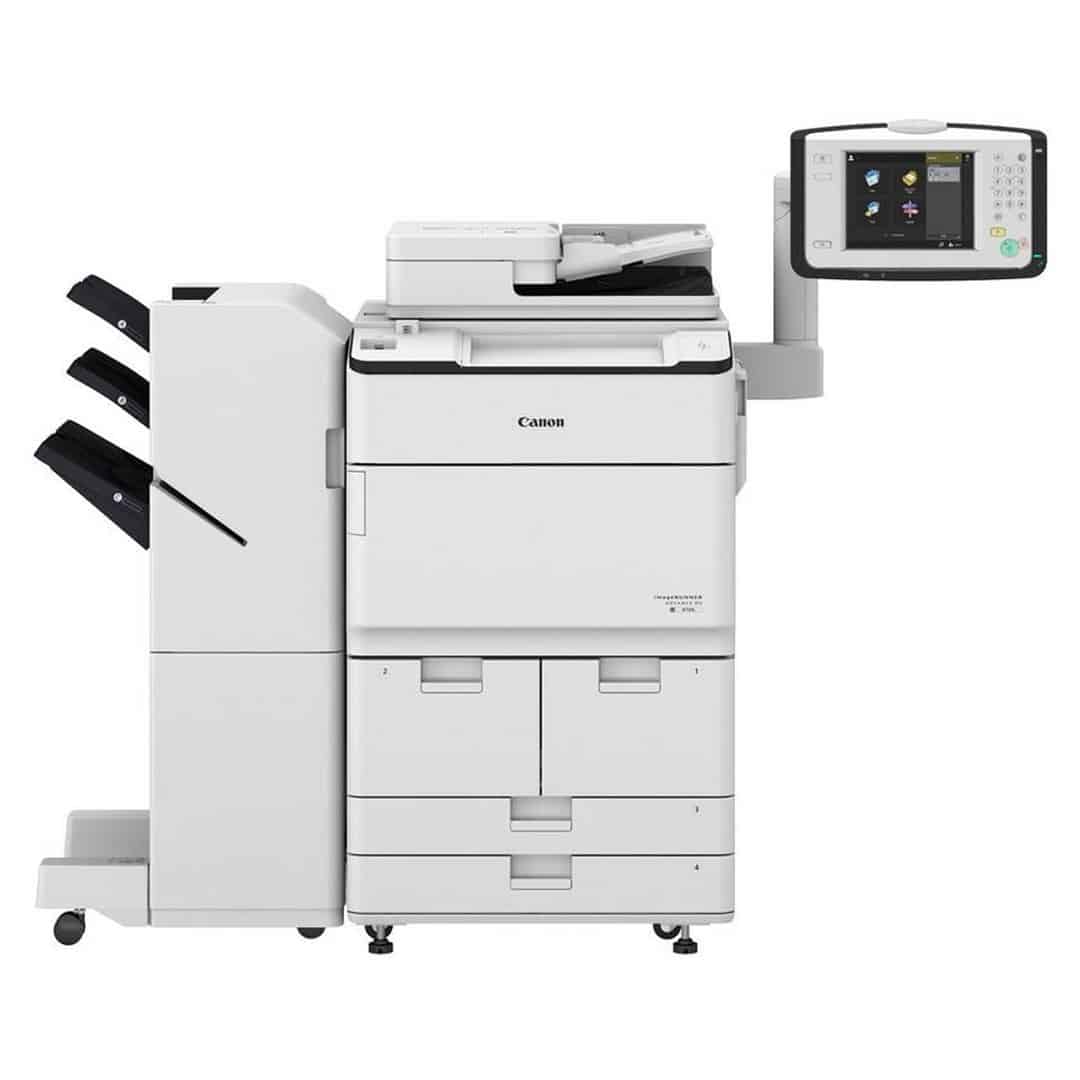

Canon imageRUNNER ADVANCE DX 8700 Series
